High efficiency small scale laboratory rotary kiln for making clay mask

FOB Reference Price:Get Latest Price
$8,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SHY-I
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangxi, China
Brand Name:
li Ang
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
Rated Max.Temp:
1300℃
Rotary speed of furnace tube:
0-3.3RPM
Angle of inclination:
0-10 (adjustable)
Furnace tube size:
92*1000
Feeding size:
5
Motor power:
0.6kw
Weight of the main body:
775kg
Measure of the main body:
1730*800*1550mm
Weight of the controller:
160kg
Measure of the controller:
750*750*1100mm
Supply Ability
Supply Ability:
1500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard wooden cases.
Port
Xianmen,Guangzhou,Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Lab rotary kiln

                      High efficiency small scale laboratory rotary kiln for making clay mask

                                                                SHY-I Labrotary Rotary Kiln

Laboratory rotary kiln is a kind of machine that can do roasting sintering test on mineral sample.It can be applied to metallurgy, geology, mining, chemical industry, building materials,pilot plant production and scientific research.
The product is made by the only manufacturer designated by the former Ministry of Geology and Mineral Resources, according to the Industrial standards.

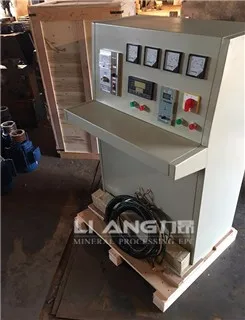

Main body of SHY-I lab rotary kiln                                                                                Controller of SHY-I lab rotary kiln

1.The machine's temperature can be self-controlled and continously adjustable.
2.The rotating tube keeps the sample flip in process so that it can be heated evenly,compared with the traditional muffle furnace.This is also the most important and major advantage.
3. Almost accurate test data with the state of production.
4.The rotary kiln tube is sealed off at its both ends and therefore, gases necessary for oxidation and reduction can be sent into it during operation.
5. High efficiency and high quality sample after constant stirring.
6.The rotary kiln can continuous discharge,so it would improve the capacity during processing massive material.

Two Typical Model

There are two typical models of laboratory rotary kiln including SHY-I and SHY-II.
The most important difference between these two models is the highest temperature that they can reach.
The laboratory rotary kiln of SHY-I can reach at most 1300 ℃.
The laboratory rotary kiln of SHY-II can reach at most 1600 ℃.
Different temperature that we use to roast the sample,different discharge that we can collect.

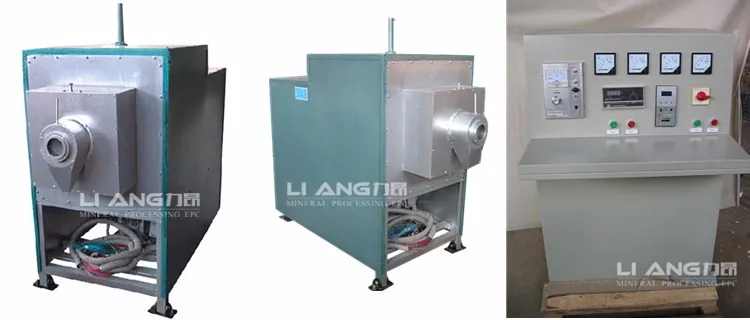

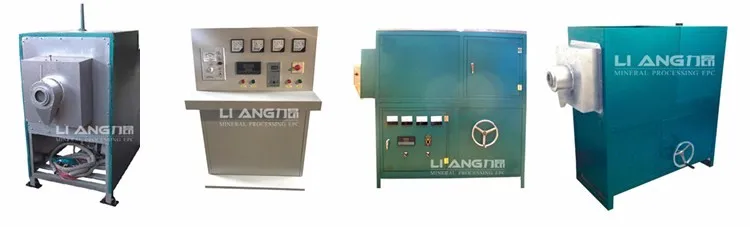

 SHY-I lab rotary kiln          SHY-I lab rotary kiln(controller)             SHY-II lab rotary kiln            SHY-II lab rotary kiln

1.Customer's nationality
Australia
2.The number of visiting people
2
3.Their occupations
engineer of mining processing;
the boss of a mining company.
4.Name of the Test Sample
a kind of clay ball as the following picture 1 shows.
5.Their interested model
SHY-I
6.Application of the machine
After processing by the rotary kiln,they want to use this kind of clay ball to produce many clay masks as picture 4.This kind of mask can help you to clean your skin,including your face,hands,etc,and to make your skin more healthy and beautiful.
7.Other requirements
They want two sets of feeding device for two kinds of clay ball with different diameter.One for 1.5cm clay ball;the other for powder sample.

Pic 1.clay ball for clay mask     Pic 2.wet clay mask              Pic 3.dry clay mask      Pic 4.clay mask from Australia

8.The test that they do on the machine

(1)Make sure that the lab rotary kiln can reach the temperature that they need to roast their samples.
Here is the picture 5 that can show the process of the temperature go up to about 1250℃.

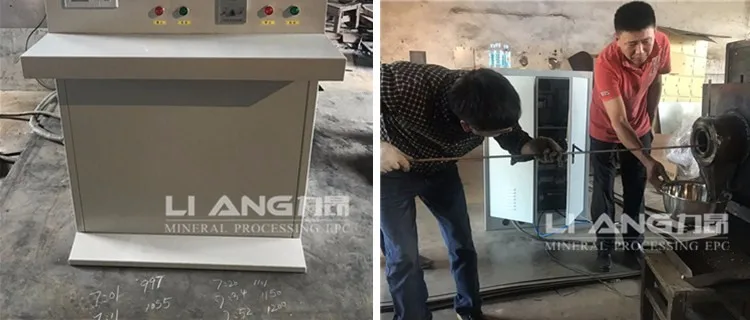

Pic 5.temperature changes                                                                    Pic 6.get the sample out as soon as possible

(2)Try to get their desired discharge at the temperature of 1250 ℃.

They needed the temperature to reach 1250 ℃ to roast their clay ball.They got this shape of discharge as picture 7 after half an hour's roasting in the furnace tube.However,they found that the discharge was too hard just like the sand and their color was also not the one they needed.The discharge could not be used to produce clay masks.So they tried for the second time.

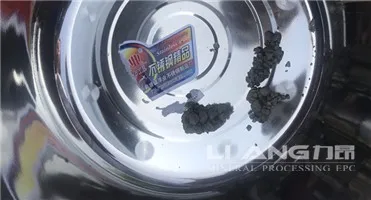

Pic 7.the first time's discharge

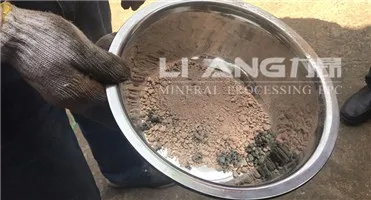

Pic 8.the second time's discharge
(3)Try to get their desired discharge at the temperature of 1100℃.
At first,the customer of the engineer asked us to get the roasted sample out as quickly as possible as picture 6.Then they turned the temperature to 1100℃ to roast the clay ball again for about 15mins this time.Then we got this shape of discharge as the picture 8.They were very happy when they saw the powder discharge.The machine was just what they wanted to help them to produce the clay masks!This machine was what they were looking for.The engineer told me that it was workable!

(4)Make sure that it can cool down from a high temperature of 1135℃ to a normal temperature.


(5)Ensure that the clay ball can go out from the feeding hopper to the outlet smoothly and quickly.

9.The experimental result:

(1)The lab rotary kiln can reach a higher temperature about 1300℃ and cool down to a normal temperature.
(2)The lab rotary kiln can help them to study their mass production of clay mask successfully.

Our company

Ganzhou Li Ang Machinery Co.,Ltd. was founded in 1988.
We specialize in mining machine including shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator,electrostatic separator, vibrating screen, gold pan, feeder, classifier, ore washing machine and lab equipment ect.
We also do research and manufacture various laboratory pretreatment equipment,such as lab crusher,lab ball mill&grinder,lab flotation machine,lab gravity separation equipment,lab sample pulverizer,lab crusher divider,lab hammer crusher divider,lab jaw crusher divider,lab magnetic separator,lab leaching agitator,lab rotary kiln,lab vacuum filter,lab drying machine,lab screening&classification machine,smelting furnace and other lab equipment.
Our machines are applied to separate GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite,ect.
And our equipments are also mainly used in laboratory of university, government environmental protection agency, third-party test company and mine company.
Over the years we won a very good reputation from overseas customers.We believe it is our excellent product quality, reasonable prices and excellent service that make us won a lot of customers and also their recognition.
Believe us! We are your relieable parter and ideal choice!

Pre-Sales Service:

1.We can help you select equipment model and design resonable and complete production line flow according to clients's requirements and budget.
2.Welcome to do the sample testing in our factory.A lot of clients sent or brought them to us to do the test.
3.OEM service is available.We can design and manufacturer products based on clients' requests.
4.We can supply the technical parameters of the equipment.

After-Sales Service:

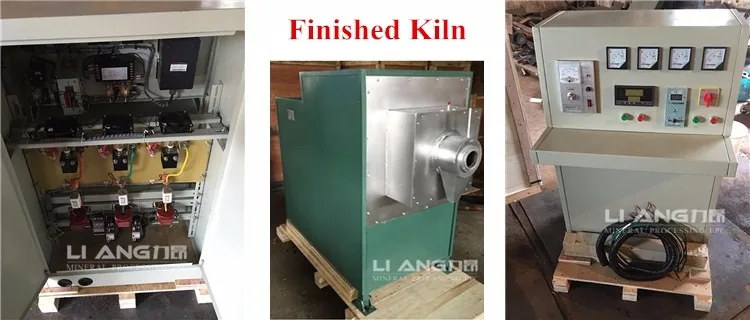

1.In order to make sure there is no quality problem,we shall pre-check and test the products before sending them out.We take pictures of finished products before delivery.
2.We shall track the logistic information until the products are well received.

3.We shall prepare the documents of custom clearance to help you receive your goods smoothly.
4.We can send professional engineers to help you install and debug the machine,train the operators and technical personnel and meet some other requirements if you need on site.

5.We can provide lifelong service of quick-wear part and technical exchanging for you.
6.We shall make prompt response to any problem about the machine within 24 hours if you have.And shall provide trouble-shooting solutions until the fault is completely eliminated.
7.To establish long-term friendship, we will regulary contact with our customers.

Q1: For providing you the suitable quotation we need to know the following information:

1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product?
Once we get your answers, I can provide you the best quotation immediately.

Q2: Do you provide ODM/OEM service?

A: OEM/ODM is welcome.A lot of clients placed an customized order from our factory.

Q3. What warranty do you give for your machine?

A:---We can supply spare parts .
   ---The quality assurance date we give is one year for the main parts after commissioning.
   ---We provide lifelong maintainence and technical support.

Q4.What is your Payment Terms?
A: We usually the follwoing payment terms.

Q5:What's your means of transportation?
A:We have these means of transportation as below.

Q6. What is your delivery time?
A:Pls find the answers as below.

Product
Lead time
shaking table
<=10days
laboratory mining equipment
<=10days
large mining equipment
30-40 days.
customized machine
30-40 days.
Tip:Exact delivery shall be confirmed when placing the order.
