2018 newly speed adjustable D12 muti-cell flotation with plexiglass cells

FOB Reference Price:Get Latest Price
$1,000.00 - $3,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
D12 Muti-cell flotation Cell
Power(W):
120w/250w
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Flotation Separator
Production Capacity:
98%
Place of Origin:
Jiangxi, China
Brand Name:
Li Ang
Voltage:
110v -380v
Dimension(L*W*H):
Different Model
Weight:
58kg
Certification:
ISO9001:2008
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Groove Capacity:
0.5-8L
Usage:
Mining Separatoion
Application:
Laboratary or small ore
Color:
Customers' Request
Installation:
Under Guidance
Supply Ability
Supply Ability:
1300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard wooden cases
Port
Xiamen,Guangzhou,Shenzhen
Lab Flotation Cell

We have the following different models of lab flotation machine as below.
1.XFDI Flotation machine
2.XFDII Flotation machine
3.XFDIII Flotation machine
4.D12 Muti-cell flotation Cell
5.New Designed D12 Muti-cell Flotation Cell (This type will be descriped in detail in this page.)

XFDI                                                    XFDII                                                                XFDIII                                        D12 Muti-cell flotation Cell

                                        2018 newly speed adjustable D12 muti-cell flotation with plexiglass cells

Description

Flotation machine is applicable for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry.It can be used in geology, metallurgy, building materials, chemical and other industrial laboratory to floated small amount of ore samples and also in education and many minesite.It is one of the best choices for you to do the test about the mine recovery and compositing on your begining stage before mass mining plant.The working power and voltage of XFD single-trough flotation machine is AC 220V.


3L 12 cells flotation machine is a laboratory flotation machine for mineral sorting. This flotation machine with two cells as one operating unit can be used for six units continuous flotation experiments, each operating unit with a single or double cells, according to user requirements can be installed to the left or right type of mine input. You just need to move the mine storage boxes and then you can install it very conveniently.

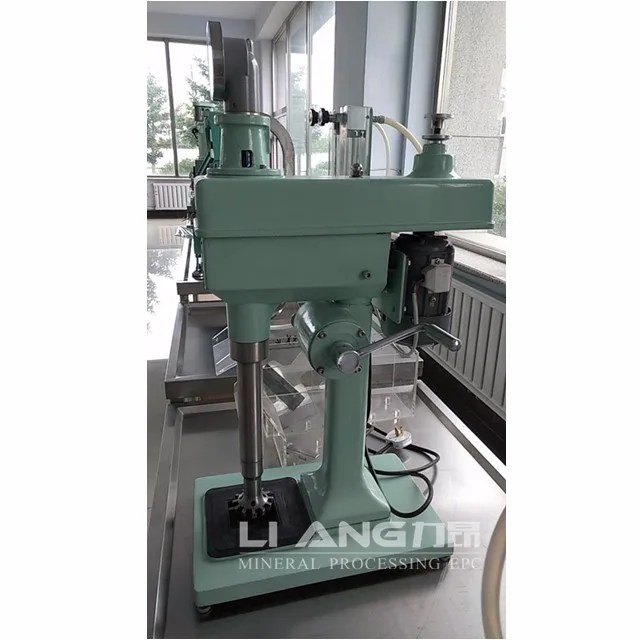

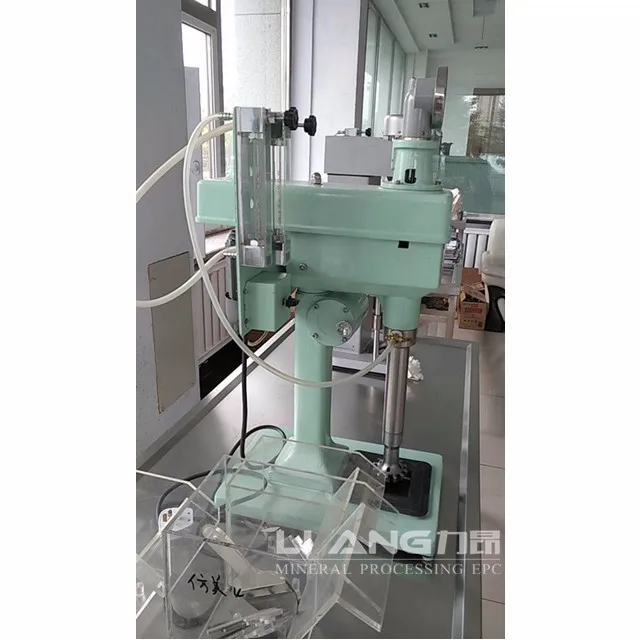

                                                                               New style D12 Muti-cell Flotation Cell

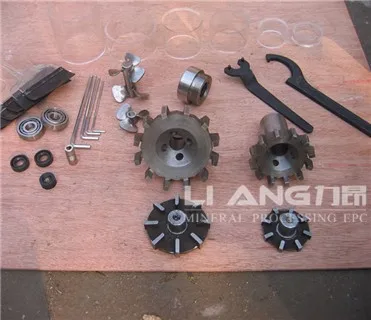

Spare Parts of New style D12 Muti-cell Flotation Cell

Features of lab flotation machine

1.Simple structure, easy operation and convenient maintenance.
2.High precision, high separation efficiency.
3.Lower pharmaceutical consumption, lower energy consumption.
4.Corrosion resisting,asdapted special technology and material.
5.Excellent quality,stable working performance.

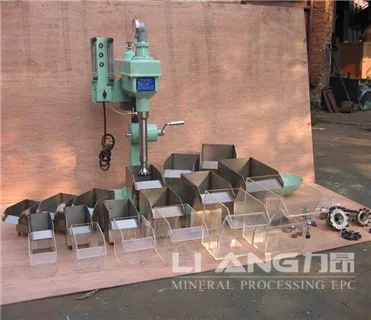

New style D12 Muti-cell flotation Cell features:

1. Cell adjustable, six different volume of cells can meet different requirements.
2. Two different material cells, plexiglass and stainless steel, can meet different needs under different working conditions.
3. Low cost. One machine gets the same function of six old type machines, changable impeller and cells makes maintenance easier and cost less.

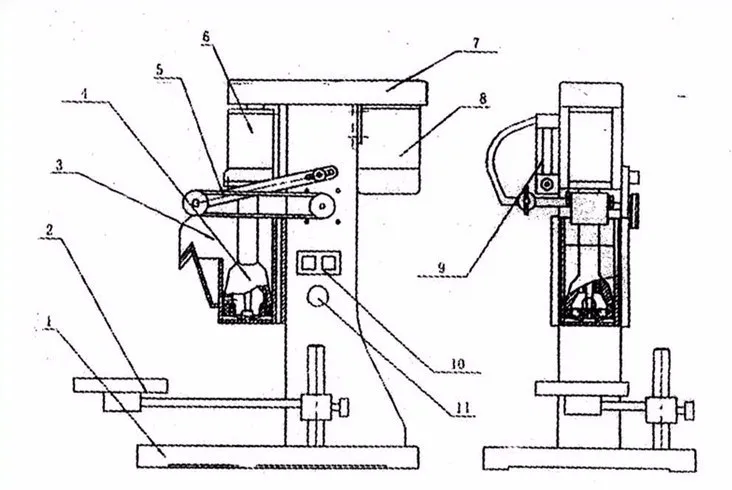

Main Components:

XFDI Lab flotation machine is mainly composed by below parts:
(1)base (2) the carrier (3) the tank (4) stir part (5)  blade part (6) spindle part (7) the cover (8) the motor (9) flow meter (10) switch controls  (11) blade switch

Working Principle:

Before operation, we should check if the main spindle turns clockwise normally. If not, then change phase sequence of the power source to let the motor turns clockwise before operation. Mix mineral samples with water and then pour them into the cell. Turn on the start button of the motor to make the main spindle for rotation. The impeller will rotate in the cell. Then open the valve for air inflation and add chemical agent to help form foams. Turn on the switch of the scraper motor for rotation of the scraper to scrape foams out of the cell. There is a box on the working table to collect foams. Minerals needed can be concentrated after processing of the foams.


Maintenance:

1.We'd better add lubricating oil on every rotation connection part . The bearing should be changed the lubricating grease at least 3 months each time,but REQUEST THE MELTING POINT OF LUBRICATING GREASE ≥100℃.
2.After using, please clean the cell, impeller, and keep them dry, can make the machine last a long working life .
3.When you are change the impeller stator, firstly screw out the impeller, secondly loose the fastening screw between the stator and below part, then can install a new one.
4. The lab flotation cell works at temperature from 15℃ to50℃.

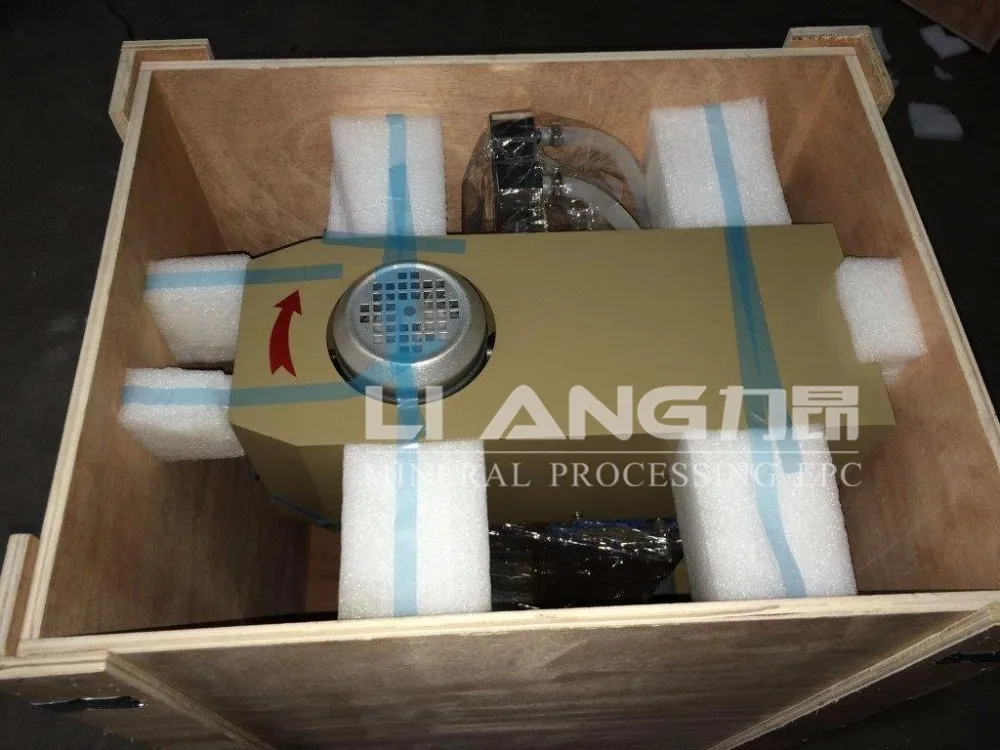

For the package of our Lab Equipment, we will use the Wooden Box packing to ensure its safety and stability during international transportation.

Our company

Ganzhou Li Ang Machinery Co.,Ltd. was founded in 1988.
We specialize in mining machine including shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator,electrostatic separator, vibrating screen, gold pan, feeder, classifier, ore washing machine and lab equipment ect.
We also do research and manufacture various laboratory pretreatment equipment,such as lab crusher,lab ball mill&grinder,lab flotation machine,lab gravity separation equipment,lab sample pulverizer,lab crusher divider,lab hammer crusher divider,lab jaw crusher divider,lab magnetic separator,lab leaching agitator,lab rotary kiln,lab vacuum filter,lab drying machine,lab screening&classification machine,smelting furnace and other lab equipment.
Our machines are applied to separate GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite,ect.
And our equipments are also mainly used in laboratory of university, government environmental protection agency, third-party test company and mine company.
Over the years we won a very good reputation from overseas customers.We believe it is our excellent product quality, reasonable prices and excellent service that make us won a lot of customers and also their recognition.
Believe us! We are your relieable parter and ideal choice!

Pre-Sales Service:

1.We can help you select equipment model and design resonable and complete production line flow according to clients's requirements and budget.
2.Welcome to do the sample testing in our factory.A lot of clients sent or brought them to us to do the test.
3.OEM service is available.We can design and manufacturer products based on clients' requests.
4.We can supply the technical parameters of the equipment.

After-Sales Service:

1.In order to make sure there is no quality problem,we shall pre-check and test the products before sending them out.We take pictures of finished products before delivery.
2.We shall track the logistic information until the products are well received.

3.We shall prepare the documents of custom clearance to help you receive your goods smoothly.
4.We can send professional engineers to help you install and debug the machine,train the operators and technical personnel and meet some other requirements if you need on site.

5.We can provide lifelong service of quick-wear part and technical exchanging for you.
6.We shall make prompt response to any problem about the machine within 24 hours if you have.And shall provide trouble-shooting solutions until the fault is completely eliminated.
7.To establish long-term friendship, we will regulary contact with our customers.

Q1: For providing you the suitable quotation we need to know the following information:

1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product?
Once we get your answers, I can provide you the best quotation immediately.

Q2: Do you provide ODM/OEM service?

A: OEM/ODM is welcome.A lot of clients placed an customized order from our factory.

Q3. What warranty do you give for your machine?

A:---We can supply spare parts .
   ---The quality assurance date we give is one year for the main parts after commissioning.
   ---We provide lifelong maintainence and technical support.

Q4.What is your Payment Terms?
A: We usually the follwoing payment terms.

Q5:What's your means of transportation?
A:We have these means of transportation as below.

Q6. What is your delivery time?
A:Pls find the answers as below.

Product
Lead time
shaking table
<=10days
laboratory mining equipment
<=10days
large mining equipment
30-40 days.
customized machine
30-40 days.
Tip:Exact delivery shall be confirmed when placing the order.
